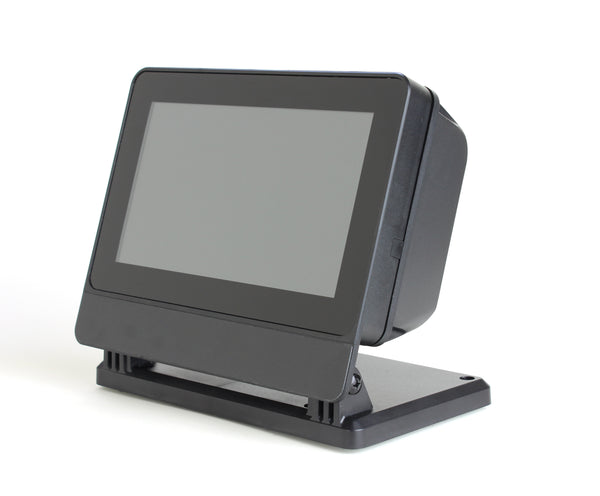

SmartiPi Touch Pro 3

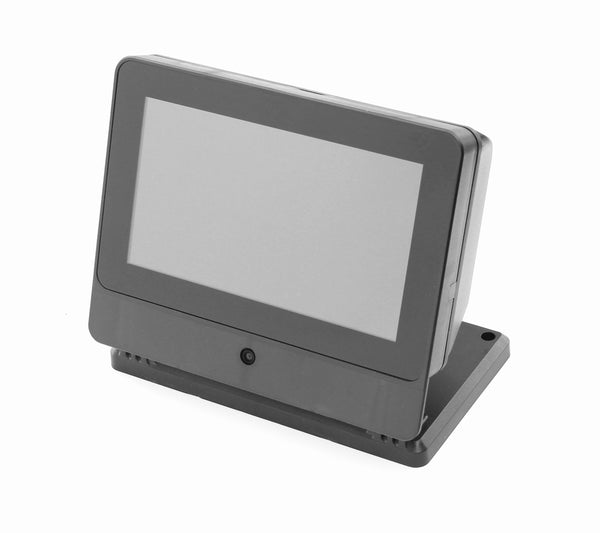

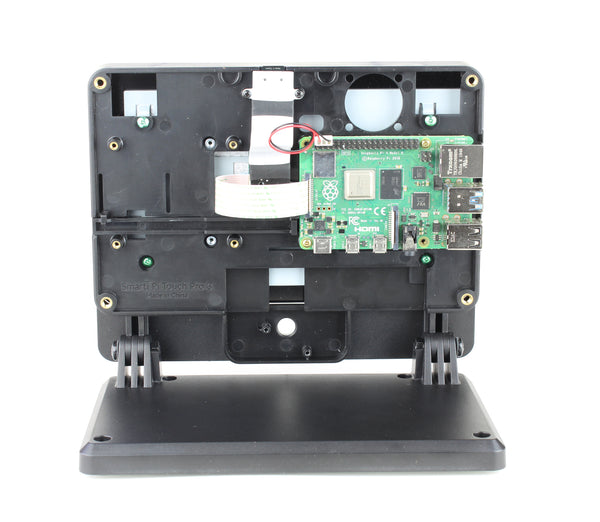

The SmartiPi Touch Pro 3 is a flexible enclosure built for the Raspberry Pi Touch Display 2 and supports Raspberry Pi models 3, 4, and 5. Choose between large and small back covers. The large internal volume of the case offers plenty of room for HAT boards or custom hardware. There is also a dedicated space beneath the display for mounting a Raspberry Pi camera.

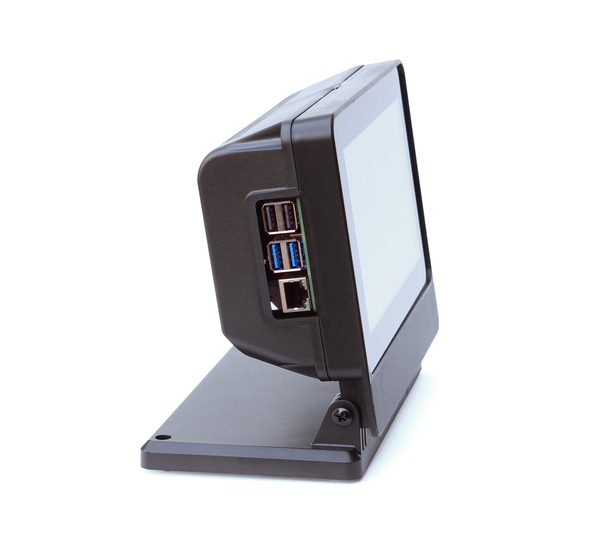

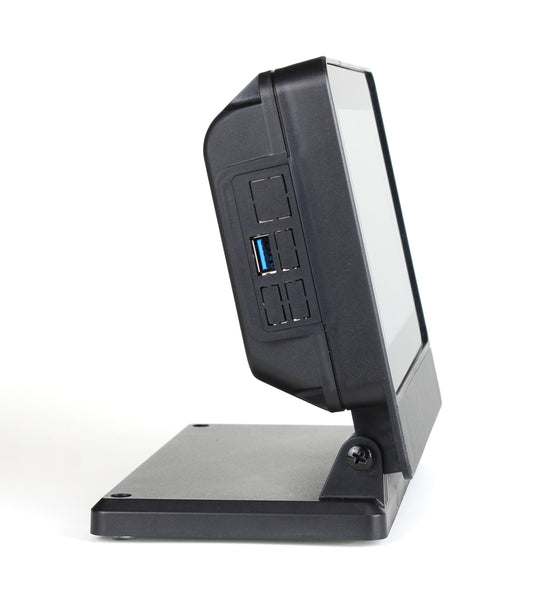

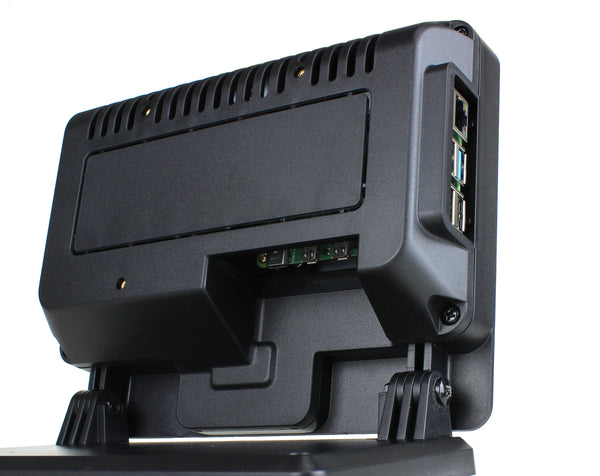

For Raspberry Pi 5 users, a built-in side switch activates the Raspberry Pi 5 microswitch which can turn the Pi on/off (depending on the operating system). Once assembled, the case allows easy access to the USB and Ethernet ports from the side, while the HDMI and audio ports remain accessible from the back. A fan is not included but can be added as an optional accessory.

 Detailed setup guide for the case available here.

Raspberry Pi and Raspberry Pi Touch Display 2 are not included.

Separate USB-C power supply required. Official Raspberry Pi 27W USB-C power supply recommended if using Raspberry Pi 5. Official Raspberry Pi 15W USB-C power supply recommended if using Raspberry Pi 4.

Also sold at

SOS Solutions (NL)

Raspberrystore.nl (NL)

Pi Hut (UK)

Cytron.io (MY)

Pishop.us (US)

Pishop.ca (CA)

Core Electronics (AU)

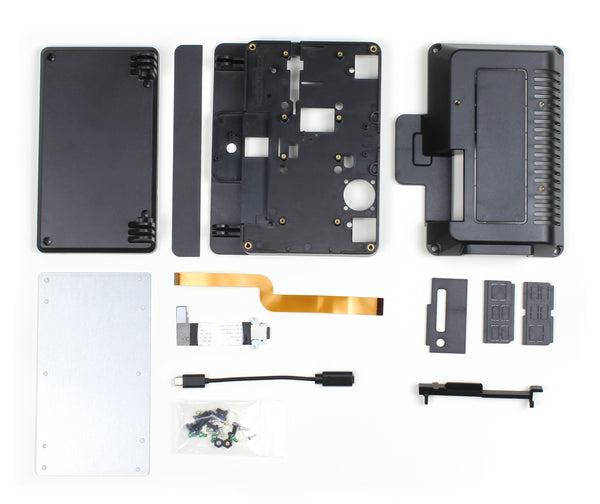

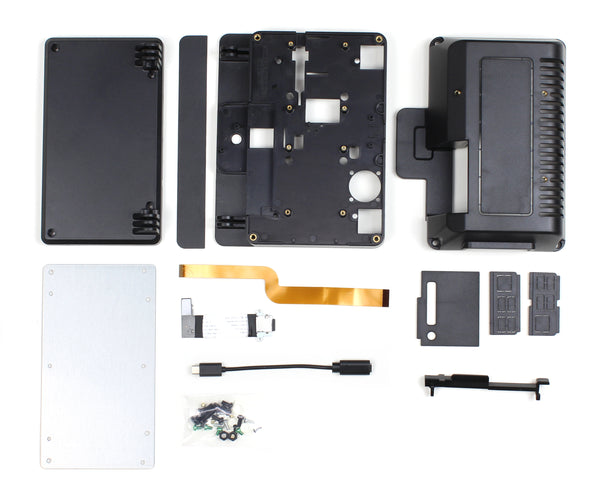

Complete list of features

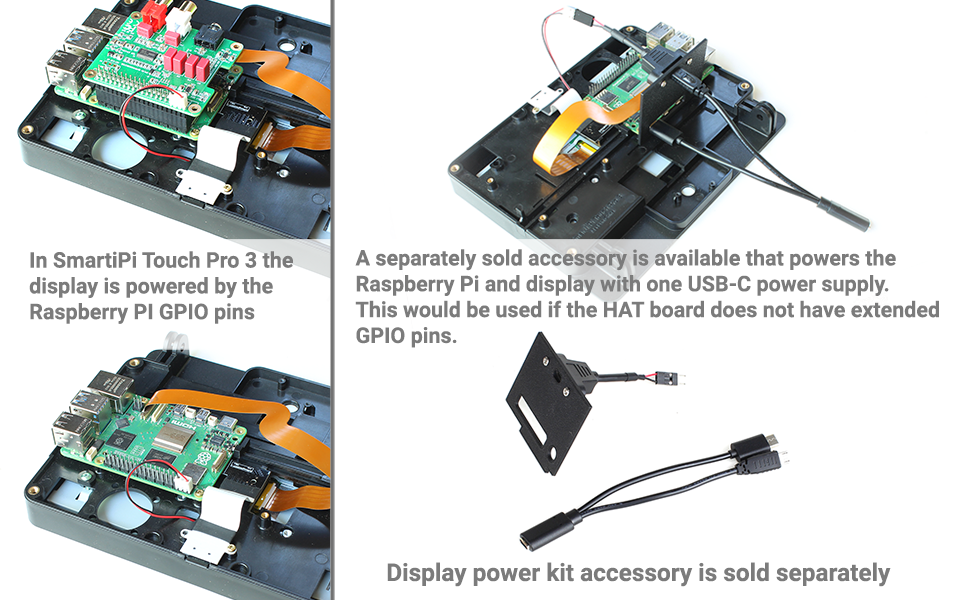

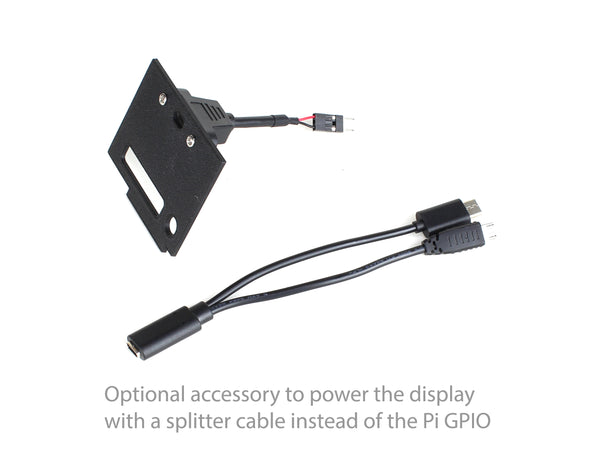

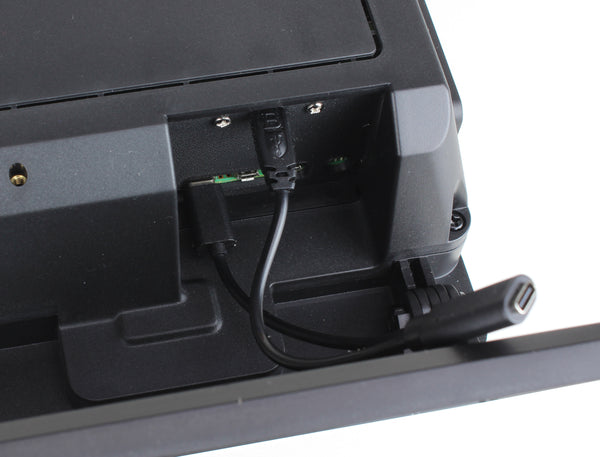

• The Raspberry Pi Touch Display 2 is powered through the Raspberry Pi’s GPIO header (extended GPIO pins are required when using a HAT). A separately sold accessory USB-C splitter cable kit can power the display and Pi at the same time as an alternative.

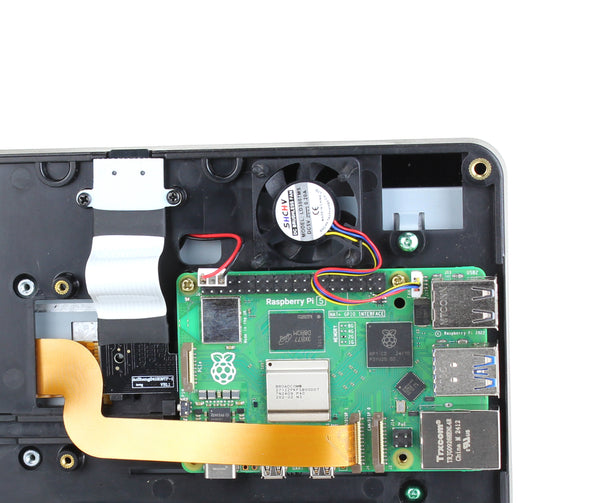

• Cooling fan is not included, though the enclosure supports an optional add-on fan.

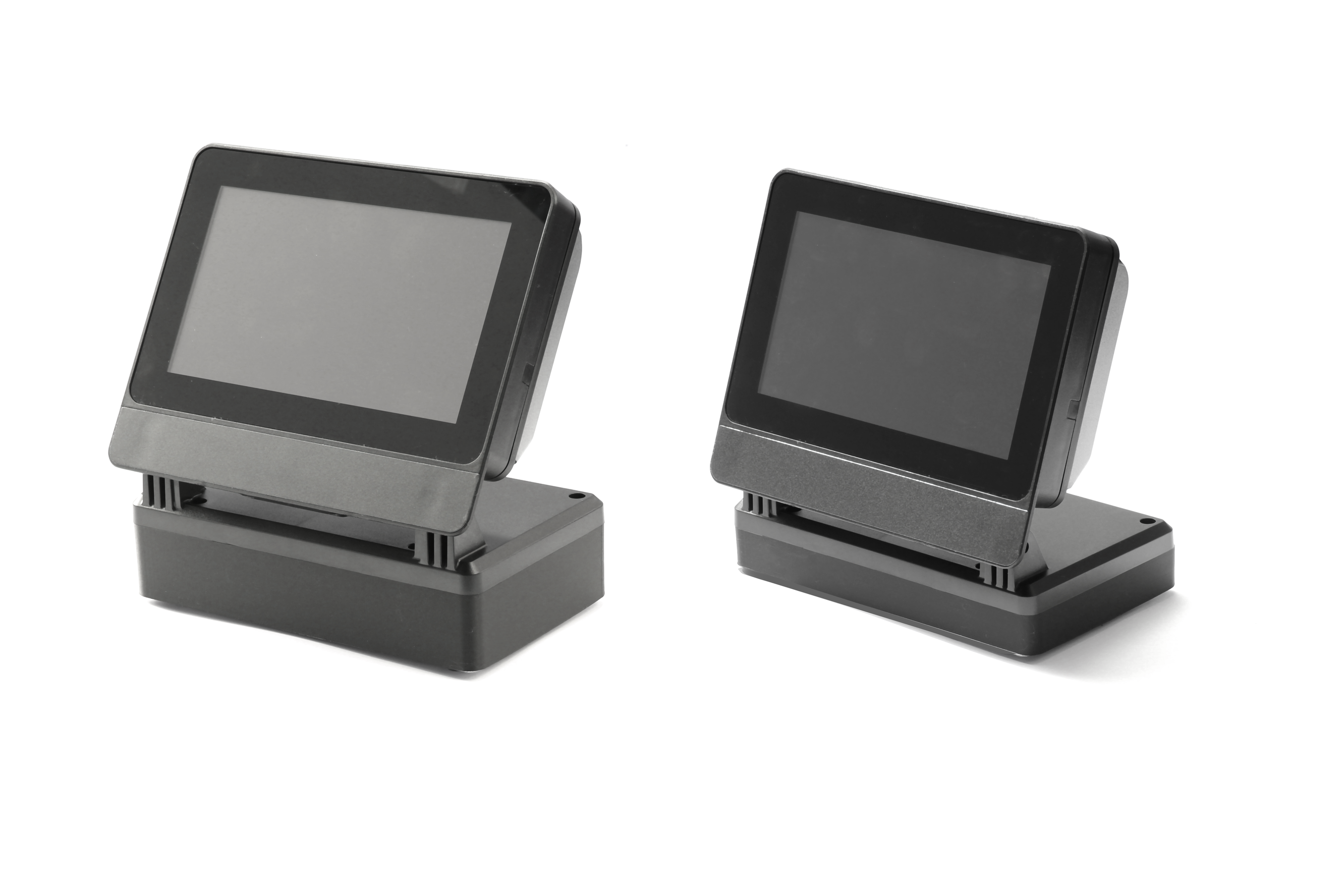

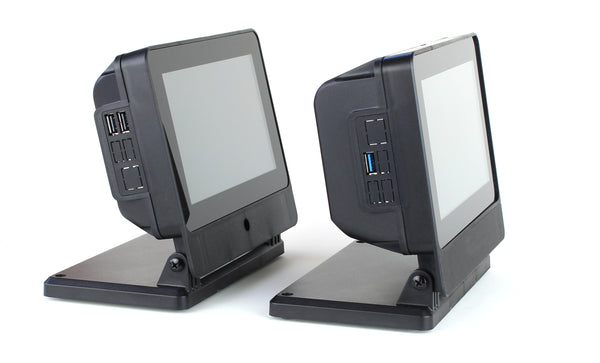

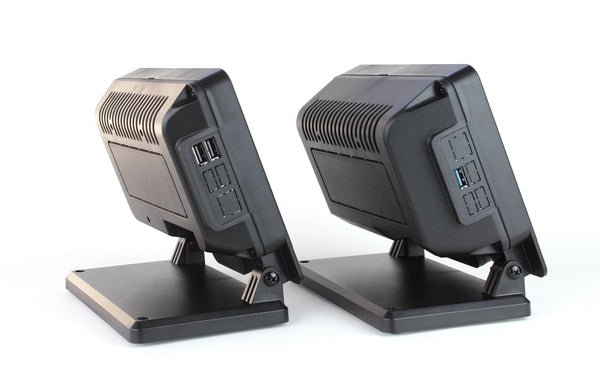

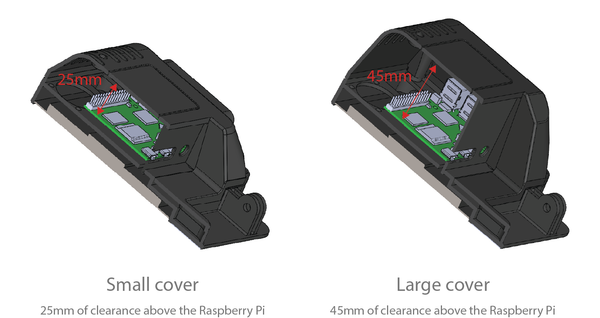

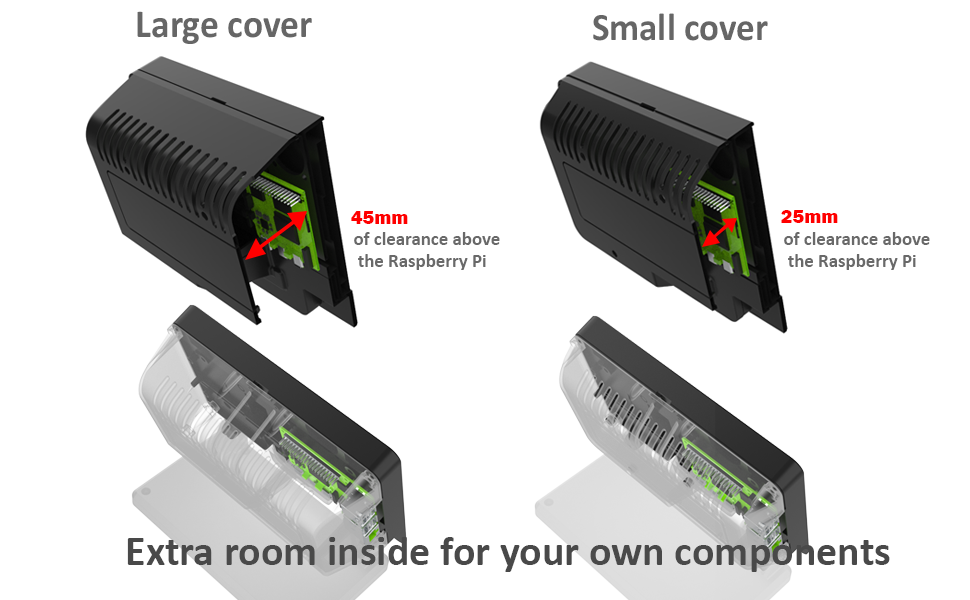

• Choose between two back cover sizes for different internal spacing needs.

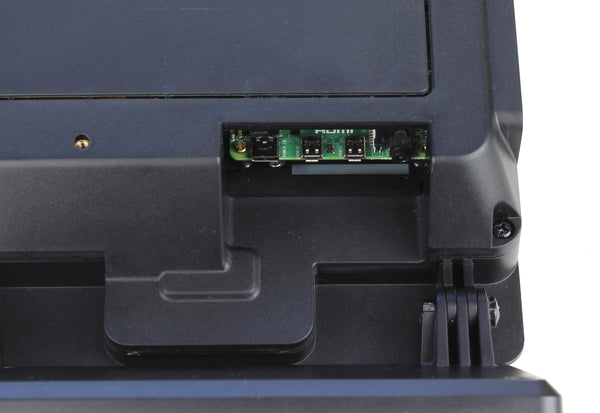

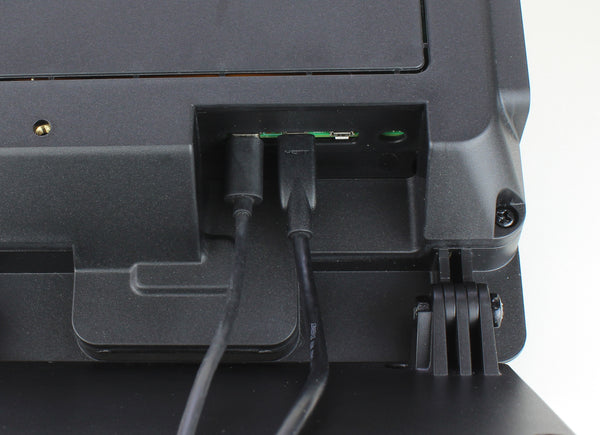

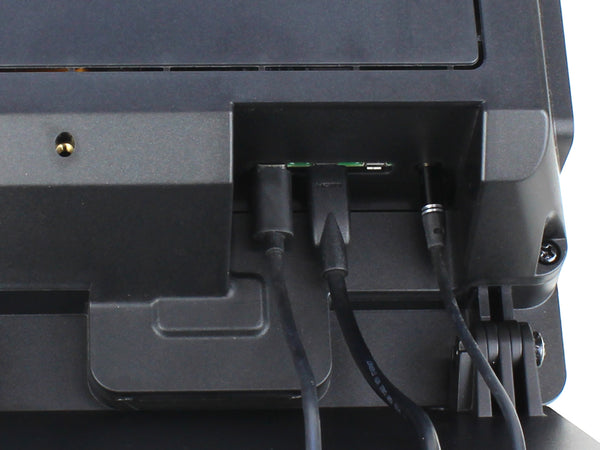

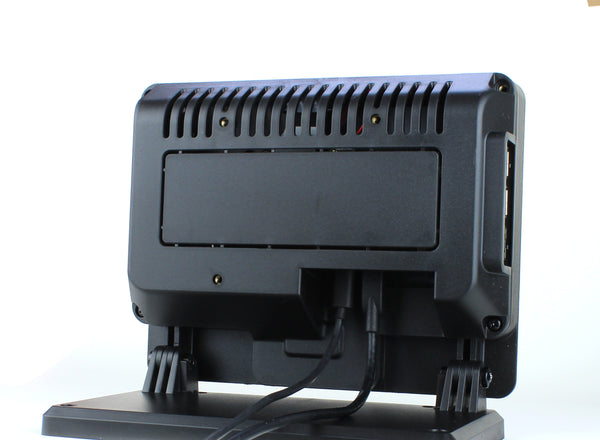

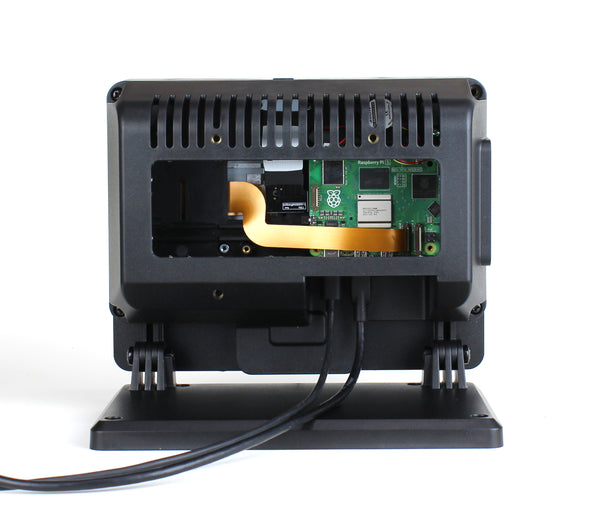

• Power, HDMI, and audio ports on the Raspberry Pi remain fully accessible from the rear of the enclosure.

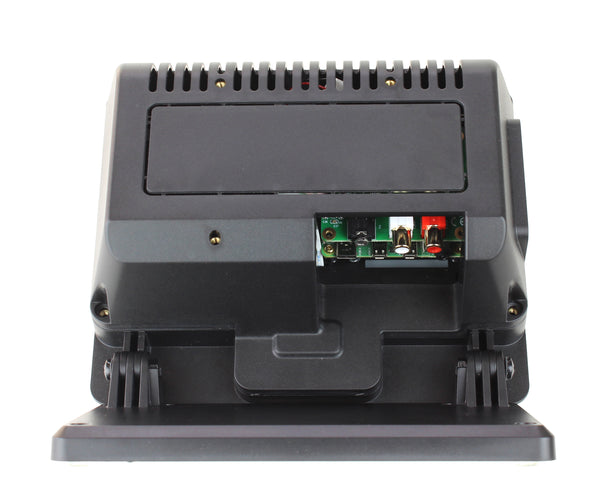

• A removable panel near the Raspberry Pi power/HDMI ports allows you to add HAT boards with overhanging connectors into the case without issue. STEP files for this panel are available for download so you can modify for your own needs.

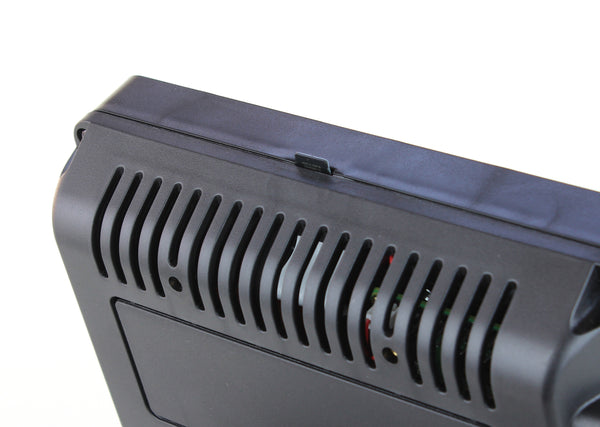

• An internal micro-SD extender is included, allowing the micro-SD card to be accessed from the top of the enclosure.

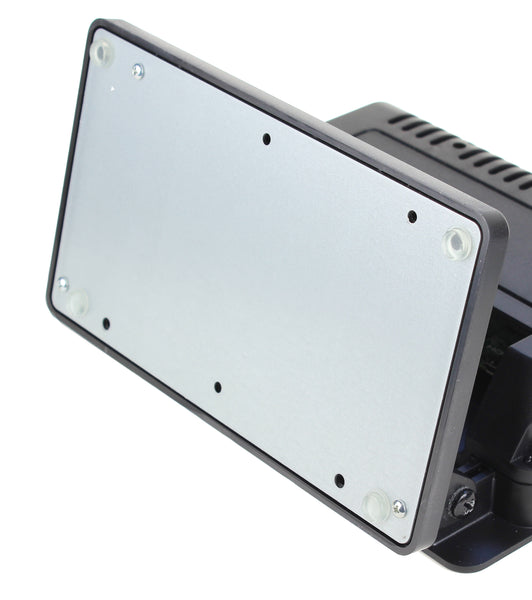

• The rear of the enclosure features 75mm VESA mounting points for compatible monitor arms and stands.
• A weighted steel base is included for improved stability when used on a desk or workstation.

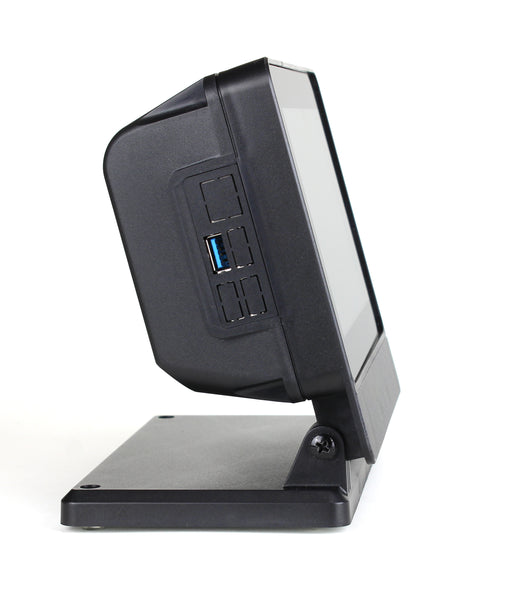

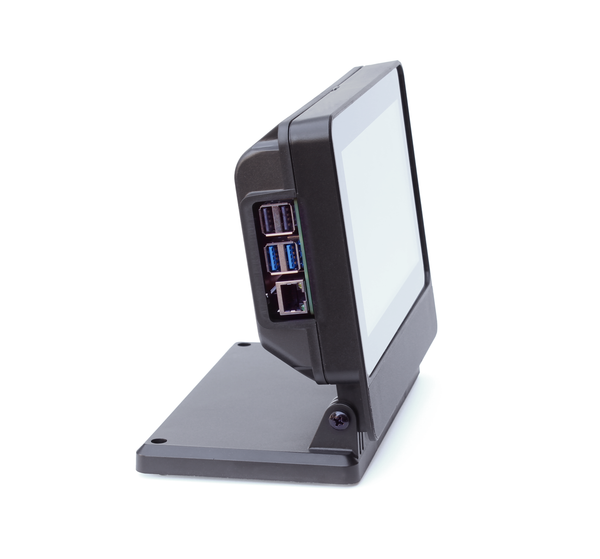

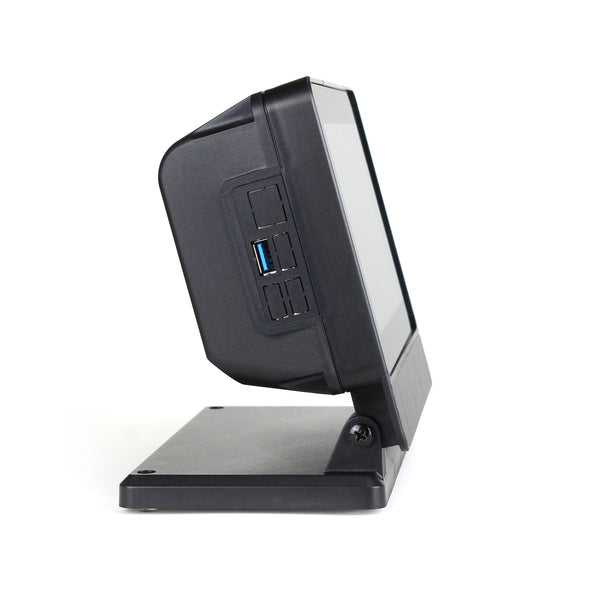

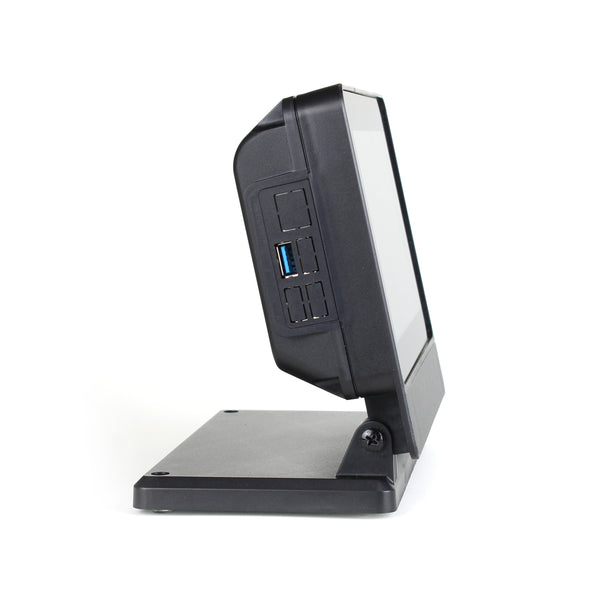

• Includes punch-out USB and Ethernet port covers supporting Raspberry Pi models 3, 4, and 5.

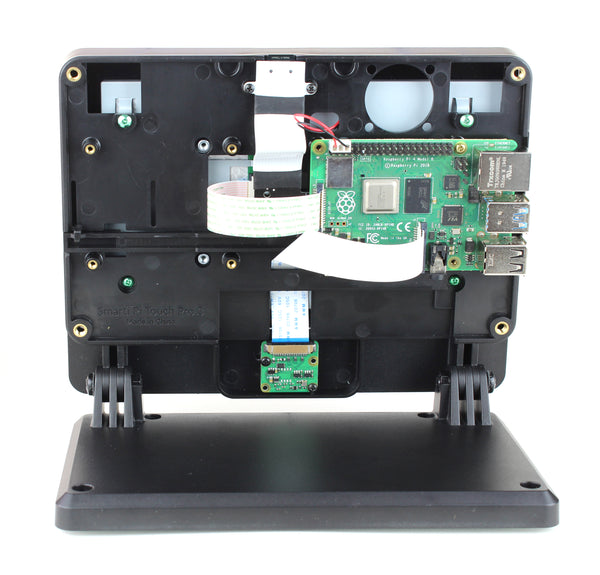

• Integrated mounting points support the Raspberry Pi Camera Module V2 and V3 (standard and wide-angle variants).

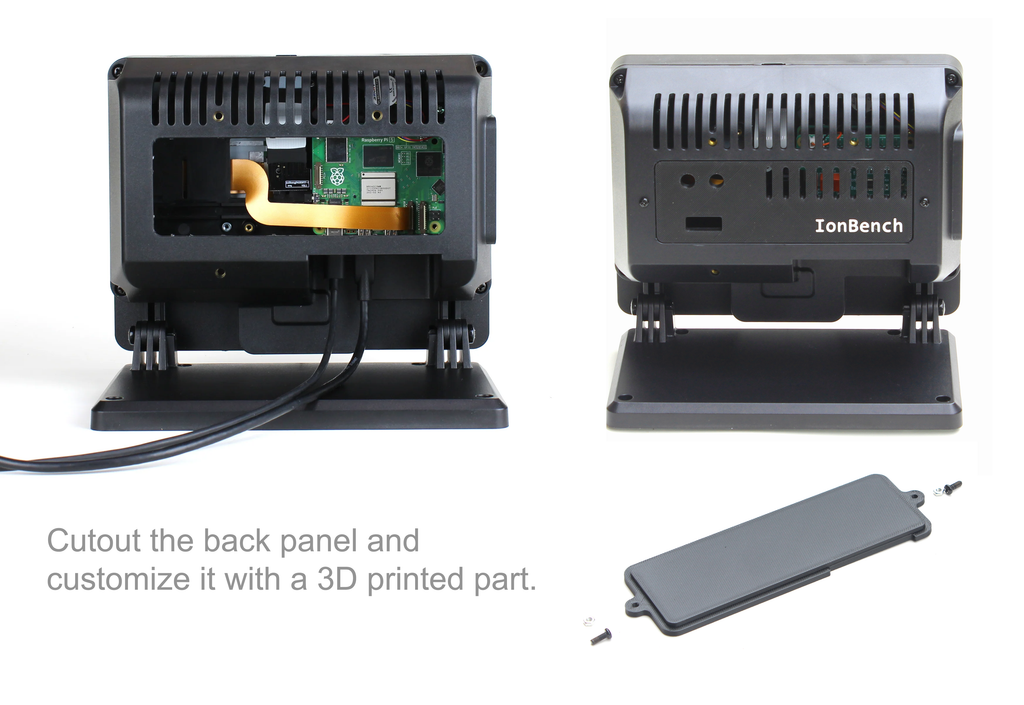

• The back panel can be removed with a utility knife to allow custom openings or cable passthroughs.
• A front adhesive label is provided to cover the camera opening (custom graphics can be added to this label available for orders of 100+ units).

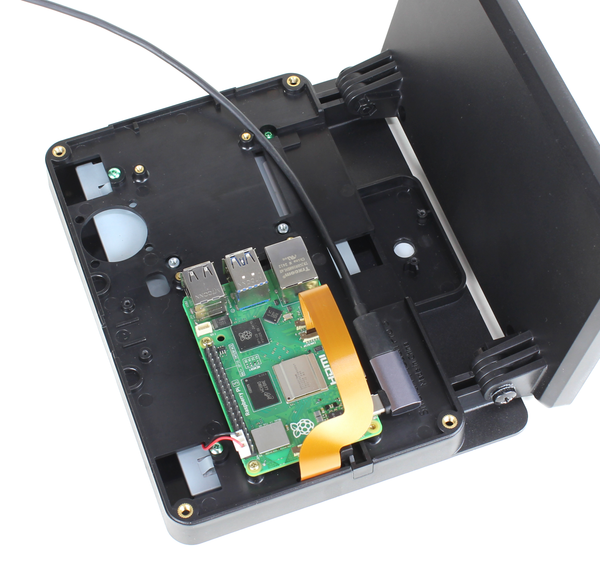

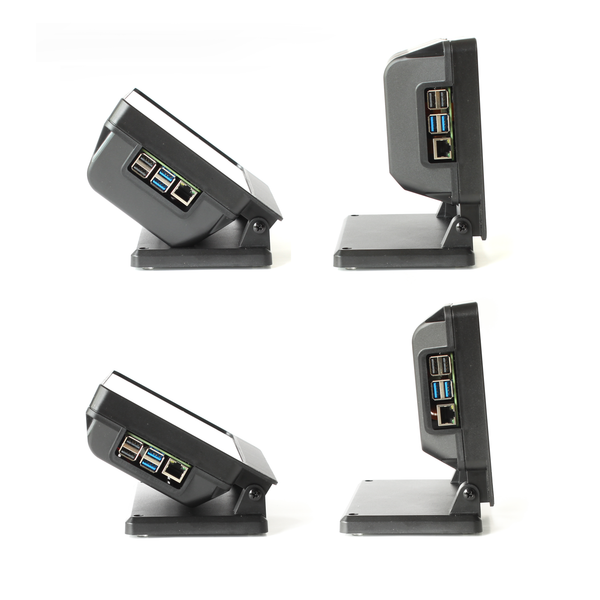

• The display assembly supports tilting for adjustable viewing angles.

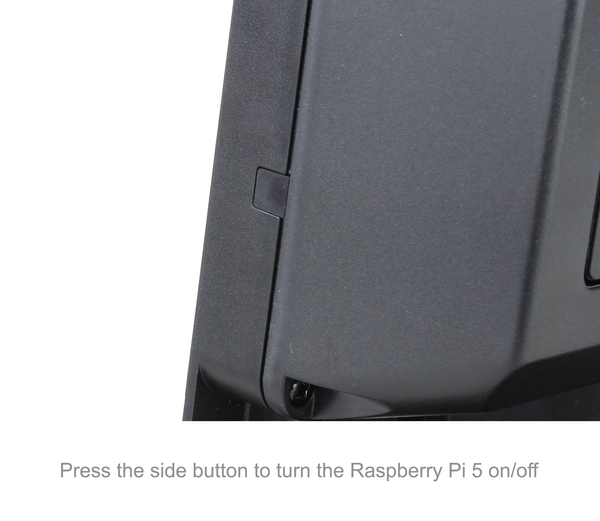

• A side button interfaces with the Raspberry Pi 5’s onboard power microswitch for convenient on/off control ( operating system dependent).

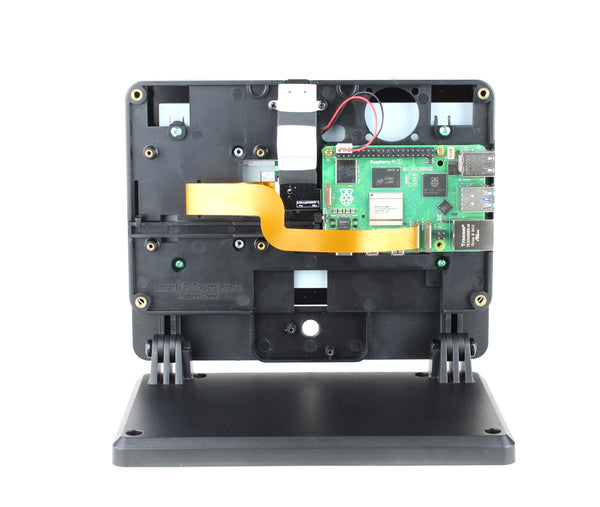

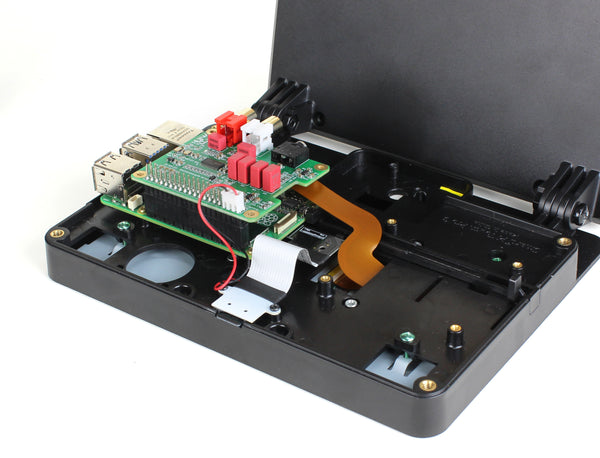

• Secondary internal mounting points allow installation of an additional development board, HAT, or alternate Raspberry Pi placement.
